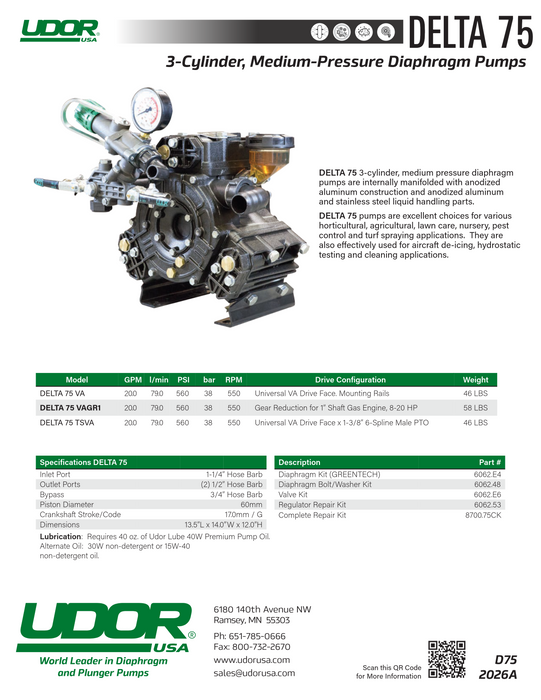

Udor Delta-75/GR Diaphragm Pump

$1,715.00
SKU Delta-75GR

Delta-75/GR medium pressure diaphragm pumps are excellent for various horticultural, agricultural, lawn care, nursery and turf spraying applications. They are also commonly used in other applications such as hydro-static testing, fire fighting and cleaning.

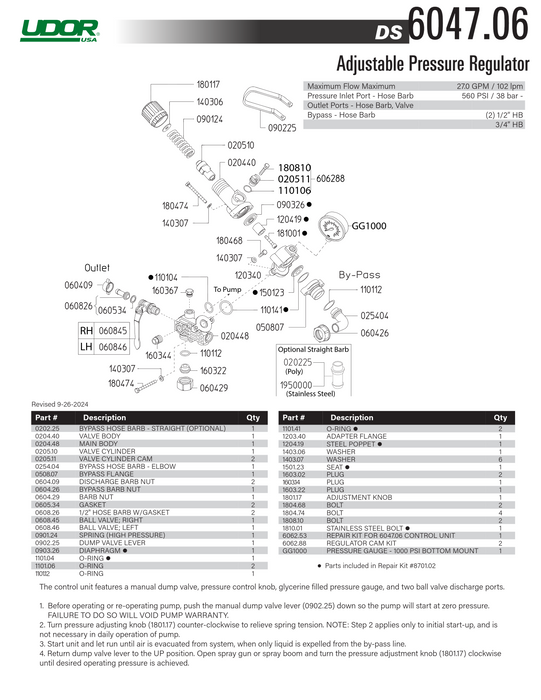

Delta-75 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models.

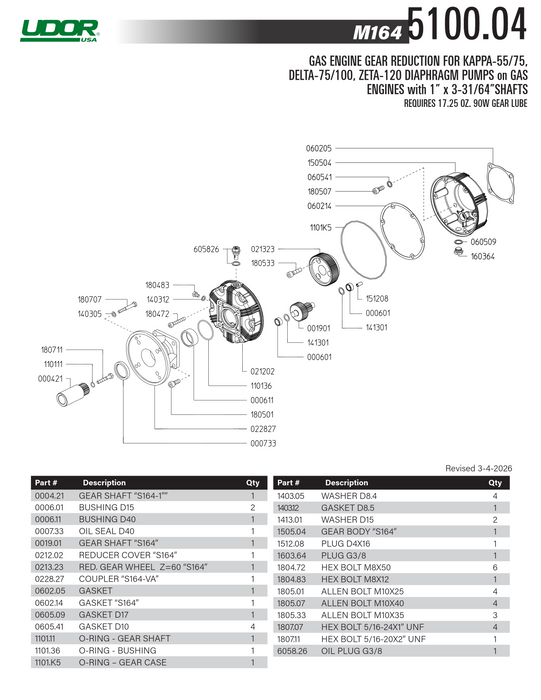

The Delta-75/GR includes the 5033.A4 gear reduction unit to connect the pump to 8-13 HP gas engines with 1" shafts.

The delta-75/GR has replaced the Kappa-75 diaphragm pump.

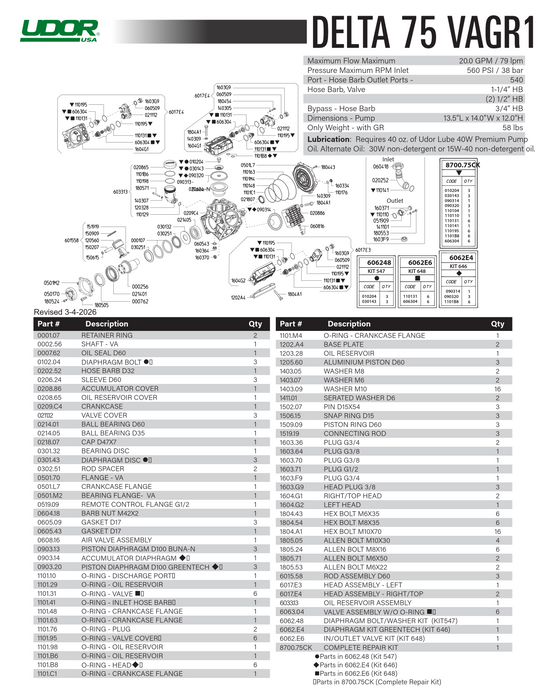

Common replacement parts are the diaphragm kit (8700.75) and control unit rebuild (8701.10).

Delta-75/GR Overview


Max GPM: 20


Max PSI 560


Max RPM: 540


Diaphragm Material: Desmopan


Inlet Barb: 1 1/4"


Outlet Barb: (2) 1/2"


Bypass Port: 3/4"


Weight: 58 LBS


Oil: 30 oz, 30-40 weight non-detergent

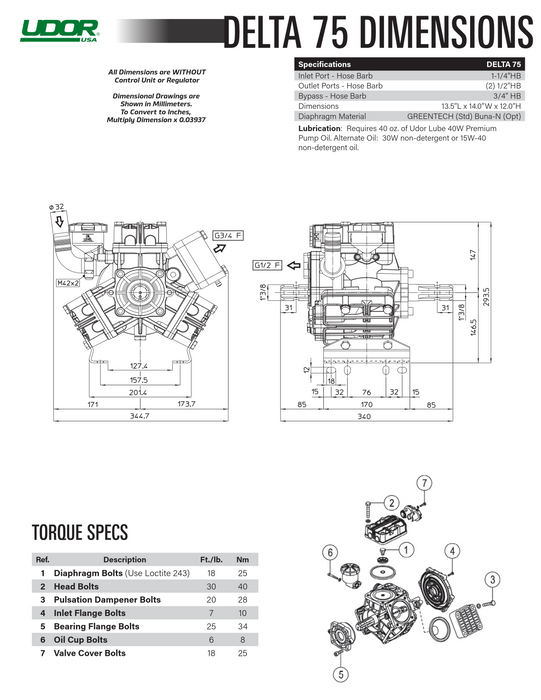

Below are downloadable technical specifications to help when rebuilding your pump.
