Modular Spray Systems





Gregson-Clark modular spray systems feature a compact frame for the pump/engine and hose reel that is separate from the tank or tanks. For vans, flatbeds, and enclosed body trucks, modular systems provide an ideal solution. The pump/engine and hose reel are typically positioned curbside for easy access and the tank or tanks can be positioned for ideal weight distribution and ease of filling. All modular frames have provisions for easily bolting down through the truck bed. The modular pumping unit (MPU) features a compact universal frame that can accommodate a hose reel or pump/engine on the top or bottom.
modular sprayer

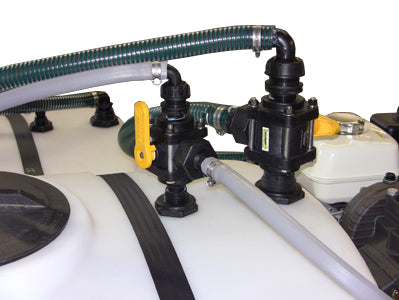

For systems with two tanks, 3-way ball valves are used on the suction and bypass lines to provide tank selection and inter-tank transfer. Systems with three or more tanks require a valve manifold.
two tank sprayer using ball vales
For vans and enclosed body trucks, our modular pumping units can be positioned curbside to allow easy access to all controls. Units can be equipped with a fast-fill line and dispensing nozzle for filling a ride-on sprayer.
PCO style modular tank assemblies are available in 35-, 50-, 100-, 150-, 200-, and 300-gallon sizes. Tank assemblies include frame, tank, straps, and suction and agitation lines installed. Leg tanks are also available in 510-, 735-, and 1,035-gallon sizes. Added to an existing sprayer, a modular tank is an inexpensive way to increase capacity and allow for two separate spray solutions.
Using state-of-the-art 3D modeling software, we can supply accurate conceptual drawings of your proposed spraying system. These dimensional CAD drawings are available on request.
trailer sprayer drawing
Complex systems are easily achieved with our modular components. For more information on modular systems for truck and trailer mounted sprayers, please call us at 1-800-706-9530. We can build a custom spray truck to achieve your needs.
custom spray system for truck
Kappa-55 Modular Pumping Unit

Kappa-55 Modular Pumping Unit

$4,651.00

The Kappa-55 Modular Pumping Unit features a compact frame for the pump/engine and hose reel that is separate from the tanks. MPU systems are idea...

View full details
$4,651.00
Kappa-43 HP Modular Pumping Unit

Kappa-43 HP Modular Pumping Unit

$4,035.00

The Kappa-43 HP Modular Pumping Unit features a compact frame for the pump/engine and hose reel that is separate from the tanks. MPU systems are i...

View full details
$4,035.00
300-Gallon Modular Tank & Frame

300-Gallon Modular Tank & Frame

$1,660.00

Modular tanks are an easy and inexpensive way to provide increased capacity or to run separate solutions. Modular tanks can be added to any ex...

View full details
$1,660.00
200-Gallon Modular Tank & Frame

200-Gallon Modular Tank & Frame

$1,080.00

Modular tanks are an easy and inexpensive way to provide increased capacity or to run separate solutions. Modular tanks can be added to any ex...

View full details
$1,080.00
100-Gallon Modular Tank & Frame

100-Gallon Modular Tank & Frame

$859.00

Modular tanks are an easy and inexpensive way to provide increased capacity or to run separate solutions. Modular tanks can be added to any ex...

View full details
$859.00
35-Gallon Modular Tank & Frame

35-Gallon Modular Tank & Frame

$693.00

Modular tanks are an easy and inexpensive way to provide increased capacity or to run separate solutions. Modular tanks can be added to any ex...

View full details
$693.00
