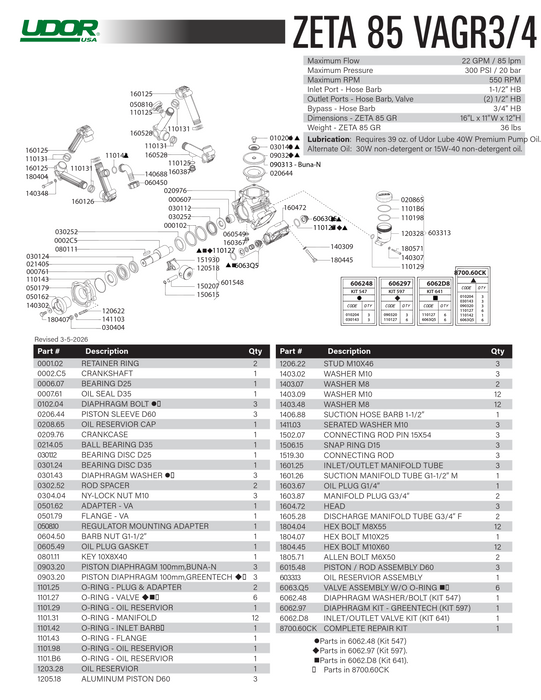

Udor ZETA-85GR5 Diaphragm Pump with Gear Reduction – 22 GPM, 300 PSI
The Udor ZETA-85GR5 combines the proven ZETA 85 three-diaphragm pump with a compact factory gear reduction for gasoline-engine-driven commercial spraying systems.
The ZETA 85 uses an anodized aluminum body, plasticized aluminum heads, stainless-steel valves, and glass-filled nylon manifolds. Udor rates the pump for a maximum flow of 22 GPM / 85 LPM, maximum pressure of 300 PSI / 20 bar, and maximum pump speed of 550 RPM.

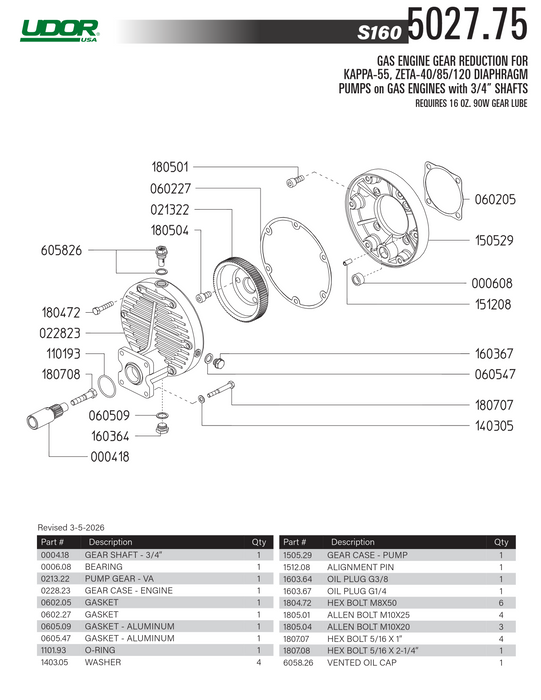

The GR5 gear reduction allows the pump to be driven directly from a compatible gasoline engine rather than using an external belt-and-pulley system. Current Udor documentation identifies this configuration as ZETA 85 VAGR3/4, specifying a gear reduction for a 3/4" shaft gas engine in the 4–6.5 HP range.
The pump is supplied with Udor’s 6010.95 adjustable pressure regulator, which provides a manual pressure dump lever, pressure-control knob, glycerine-filled pressure gauge, and two 1/2" ball-valve discharge outlets.
Performance Specifications
| Specification | Details |
|---|---|
| Manufacturer | Udor |
| Model | ZETA-85GR5 / ZETA 85 VAGR3/4 |
| Pump Type | Low-Pressure Diaphragm Pump |
| Cylinders / Diaphragms | 3 |
| Maximum Flow | 22 GPM / 85 LPM |
| Maximum Pressure | 300 PSI / 20 bar |
| Maximum Pump Speed | 550 RPM |
| Drive Type | Gas Engine Gear Reduction |
| Engine Shaft | 3/4" |
| Engine Range | 4–6.5 HP |
| Inlet | 1-1/2" hose barb |
| Discharge | (2) 1/2" hose barb valves |
| Bypass | 3/4" hose barb |
| Control Unit | 6010.95 |
| Dimensions – GR Version | 16"L × 11"W × 12"H |
| Weight – GR Version | 36 lb |
| Oil Capacity | 39 oz. |
| Recommended Oil | Udor Lube 40W Premium Pump Oil |
