ACE GE-85-LE centrifugal pump (Less engine)

The Ace Pumps GE-85-LE combines compact size, corrosion-resistant construction and dependable centrifugal-pump performance for smaller spraying and liquid-transfer systems. It is rated for maximum performance of 24 GPM and 65 PSI, making it suitable for applications requiring more pressure than a basic transfer pump without the size and weight of a large cast-iron pump.

The pump’s tall-blade impeller is designed to develop higher pressure at standard engine speeds. Its impeller mounts directly to the engine shaft, creating a compact drive arrangement without a separate shaft coupling.

The pump body, mounting bracket and impeller are constructed from polypropylene for improved resistance to corrosion. A standard carbon/ceramic mechanical seal with Viton elastomers provides compatibility with many commonly used agricultural and turf-care products. An optional silicon-carbide seal configuration is available for more demanding applications.

The “LE” designation means less engine. The GE-85-LE includes the pump and assembly hardware required to mount it to a compatible engine with a 3/4" keyed shaft, but the engine itself is not included.

Important: The GE-85-LE is not self-priming. If a self-priming version is required, see the Ace GE-85SP-LE.

Key Features and Benefits

• Maximum flow rate of 24 GPM
• Maximum pressure of 65 PSI
• Compact centrifugal-pump design
• Tall-blade impeller helps develop pressure at standard engine speeds
• Mounts directly to a 3/4" keyed engine shaft
• Polypropylene pump body and mounting bracket
• Polypropylene keyed impeller
• Corrosion-resistant construction
• Standard carbon/ceramic mechanical seal
• Viton seal elastomers
• Optional silicon-carbide seal configuration available
• 1" NPT suction port
• 3/4" NPT discharge port
• Lightweight five-pound pump assembly
• Replaceable seal, impeller, O-rings and housing components
• Suitable for new sprayer builds and replacement installations

Common Applications

The GE-85-LE may be used in properly configured systems for:

• Lawn-care sprayers
• Turf and grounds-maintenance equipment
• Small agricultural sprayers
• Pest-control spray equipment
• Compatible liquid fertilizer application
• Compatible herbicide and pesticide application
• Tank agitation
• Spot-spraying systems
• Water transfer
• Compact skid sprayers
• Utility and trailer-mounted sprayers
• Custom spraying equipment

Always verify chemical compatibility with Ace Pumps before using an unfamiliar product.

Engine Fitment and Compatibility

The GE-85-LE mounts directly to a compatible gas engine with:

• A 3/4" keyed output shaft
• Compatible shaft length and keyway
• Compatible mounting-bolt pattern
• Adequate horsepower for the required operating point
• An operating-speed range suitable for the pump

Ace offers complete GE-85 packages with 3.2 HP Honda and 4.5 HP Kohler engines, but engine compatibility should be determined by shaft dimensions, mounting pattern, operating speed and available horsepower—not horsepower alone.

Do not assume that every engine with a 3/4" shaft will fit. Confirm the shaft length, key size, bolt pattern and rotation before ordering.

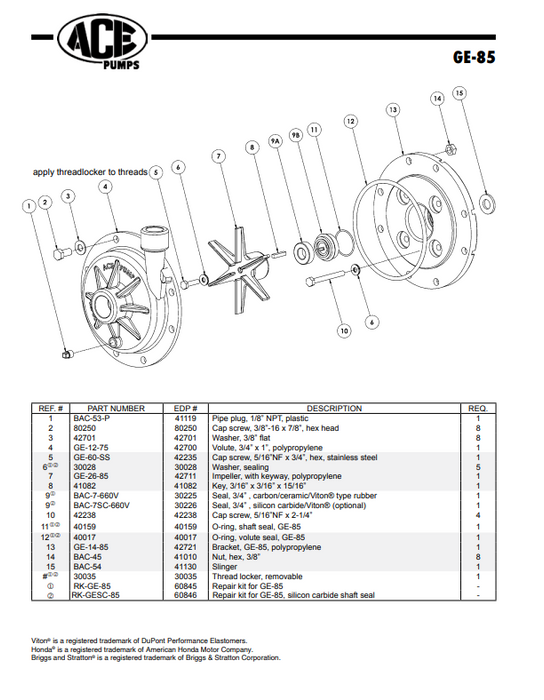

What Is Included

The GE-85-LE package includes the pump components and hardware required to assemble the pump onto a compatible 3/4" keyed-shaft engine, including:

• Polypropylene pump volute
• Polypropylene mounting bracket
• Polypropylene keyed impeller
• Carbon/ceramic mechanical seal with Viton elastomers
• Shaft-seal O-ring
• Volute O-ring
• Shaft key
• Slinger
• Required pump fasteners, nuts and sealing washers

Ace states that the GE-85-LE kit includes the parts necessary to assemble the pump onto a compatible gas engine with a 3/4" keyed shaft.
