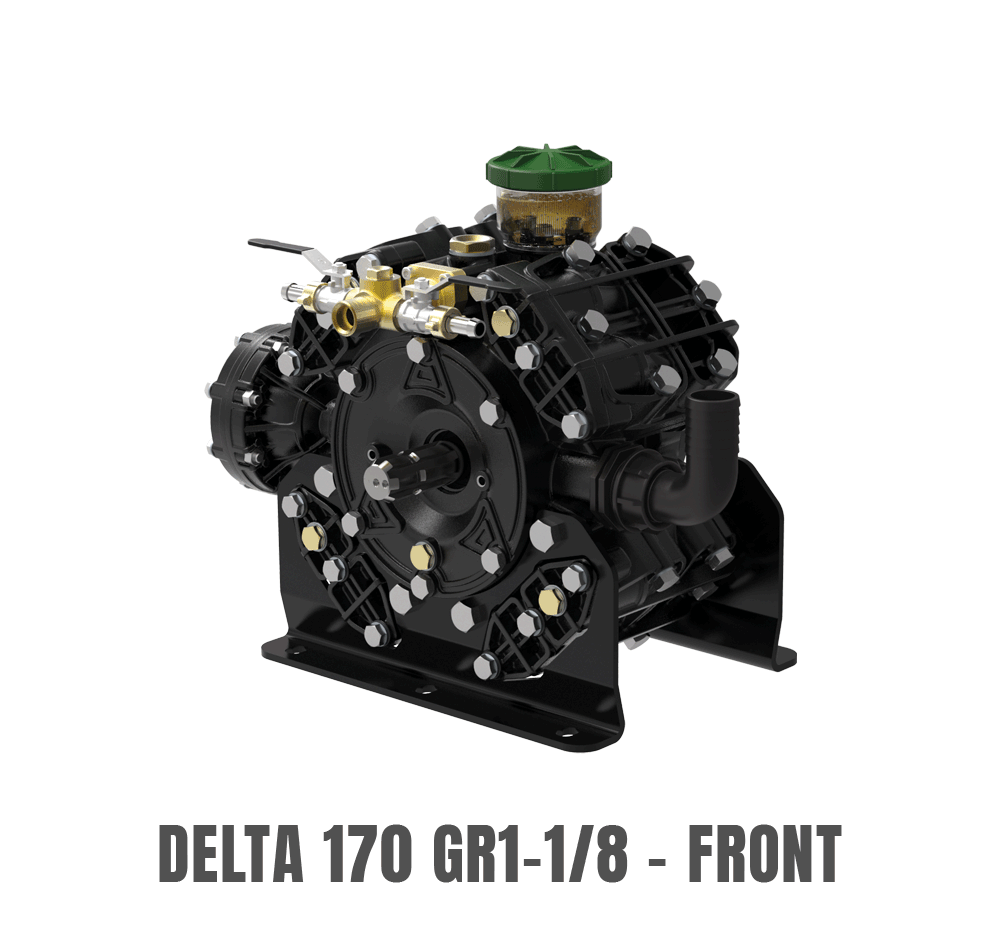

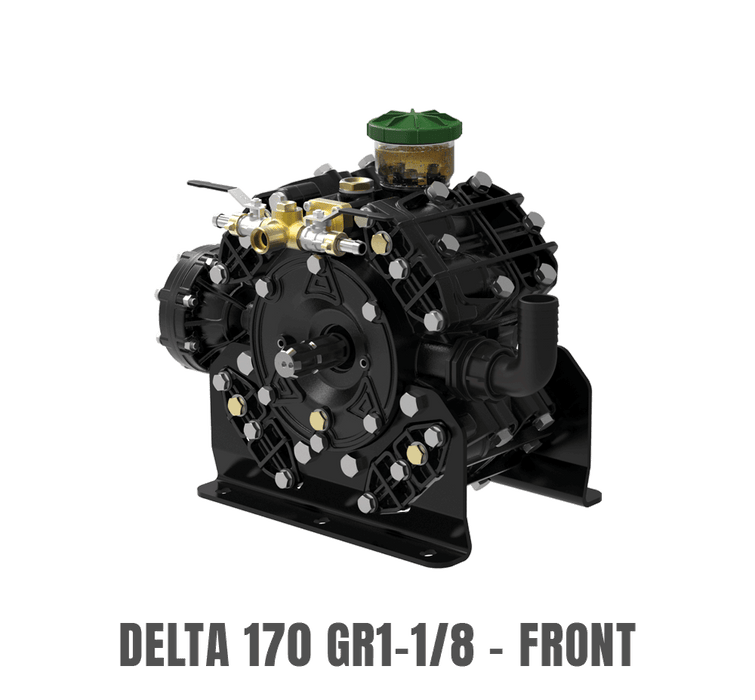

Udor DELTA-170/GR High-Pressure Diaphragm Pump with Gear Reduction – 47.3 GPM, 725 PSI
*Please note this product must ship on a pallet via LTL Truck and Trailer. Flat rate shipping provided in cart. Please call 585-538-9570 for further assistance*

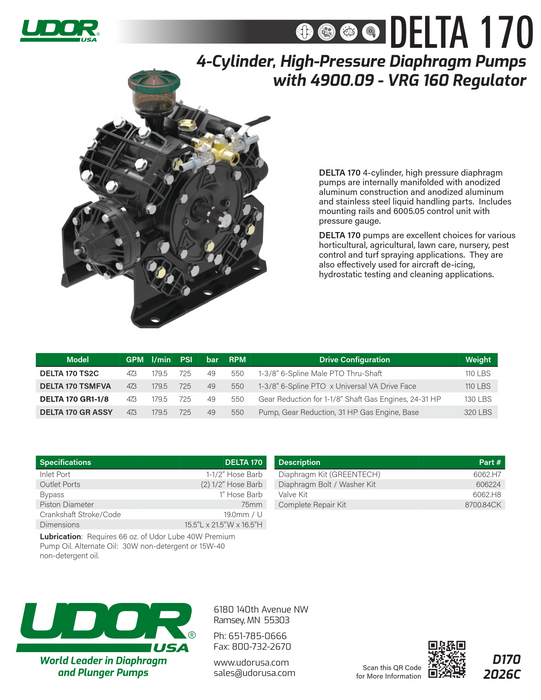

The Udor DELTA-170/GR is designed for professional spraying systems requiring high flow and high operating pressure.
Its four-cylinder diaphragm design provides up to 47.3 gallons per minute at 725 PSI, making it a strong choice for larger spray systems where smaller two- and three-diaphragm pumps cannot provide the required capacity.
The pump features an internally manifolded anodized-aluminum body, anodized-aluminum and stainless-steel liquid-handling components, and serviceable diaphragms and valves.

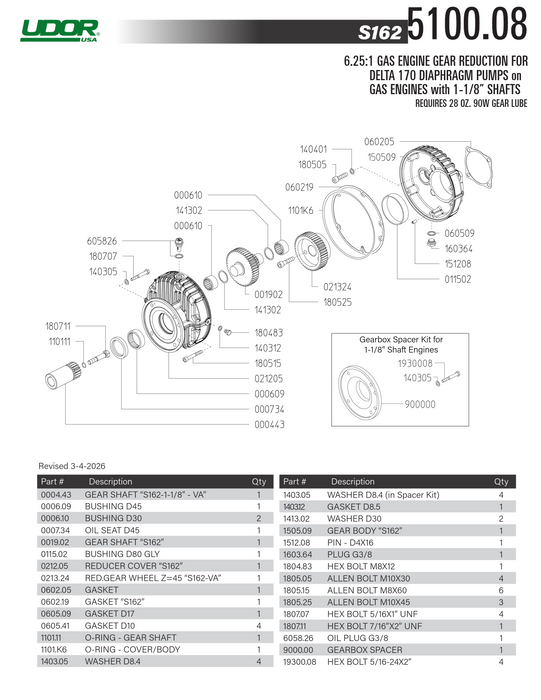

The GR1-1/8 configuration adds a factory gear reduction designed for gasoline engines with 1-1/8" shafts. Udor specifies a compatible engine range of 24–31 HP.

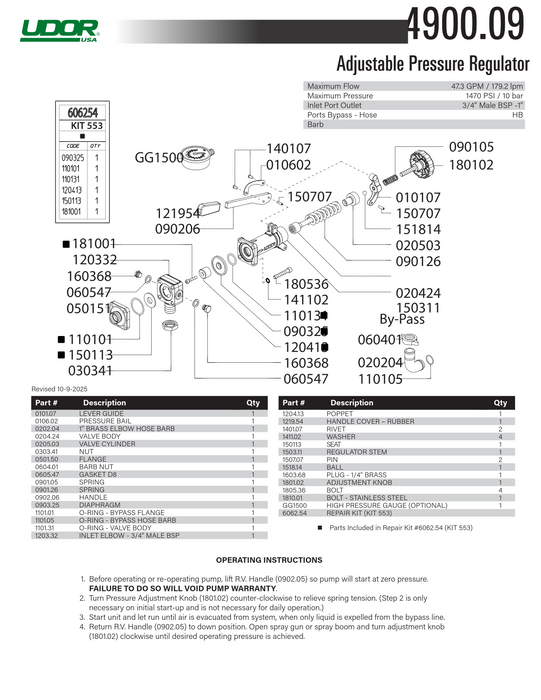

The pump also includes mounting rails and a 6005.05 pressure-control unit with gauge, providing pressure adjustment and control for demanding spray applications.
Product Specifications
|
Specification |
Details |
|---|---|
|
Manufacturer |
Udor |
|
Model |
DELTA-170/GR |
|
Current designation |
DELTA 170 GR1-1/8 |
|
Pump type |
High-pressure diaphragm |
|
Cylinders / diaphragms |
4 |
|
Maximum flow |
47.3 GPM / 179.5 LPM |
|
Maximum pressure |
725 PSI / approximately 50 bar |
|
Maximum pump speed |
550 RPM |
|
Drive |
Gas-engine gear reduction |
|
Engine shaft |
1-1/8" |
|
Engine range |
24–31 HP |
|
Gear reduction |
5096.B5 |
|
Inlet |
1-1/2" hose barb |
|
Outlets |
(2) 1/2" hose-barb valves; 3/4" MPT port listed in breakdown |
|
Bypass |
1" hose barb |
|
Piston diameter |
75 mm |
|
Crankshaft stroke |
19 mm |
|

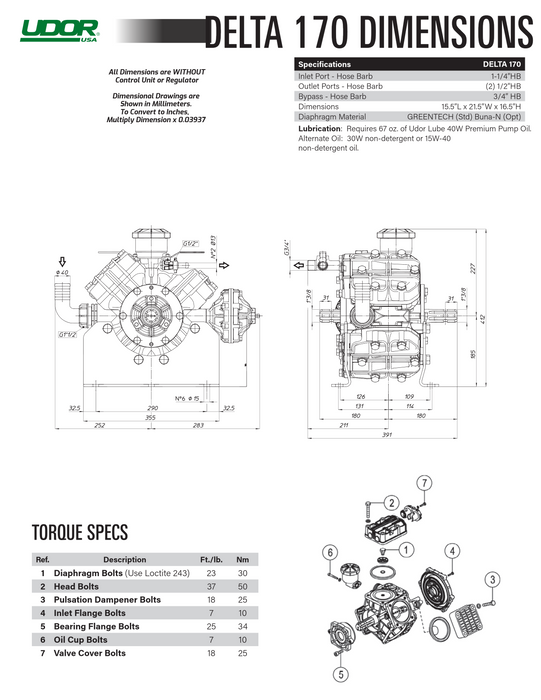

Dimensions |
15.5"L × 21.5"W × 16.5"H |
|
Weight |
130 lb |
|
Pump oil capacity |
66 oz. |
|
Recommended oil |
Udor Lube 40W Premium Pump Oil |
|
Alternative oil |
30W or 15W-40 non-detergent |
|
Control unit |
6005.05 |
|
Housing material |
Anodized aluminum |
|
Color |
Not specified |

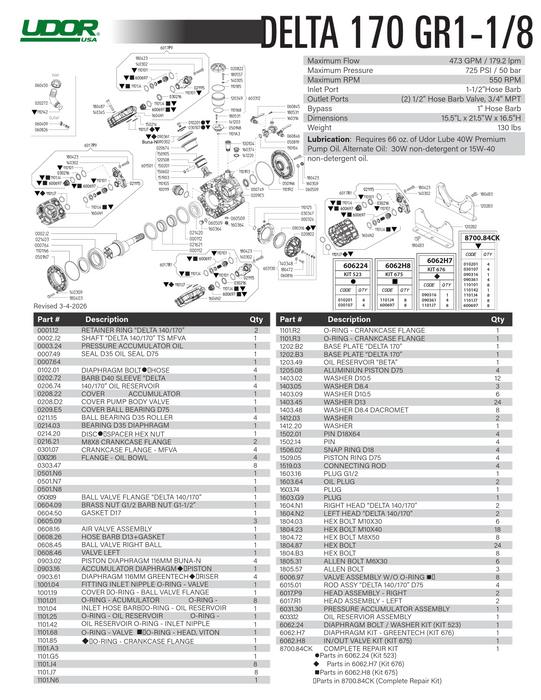

OEM Repair Kits
The following repair kits are verified OEM Udor replacement parts.
|
Repair Kit |
Udor Part Number |
|---|---|
|
GREENTECH Diaphragm Kit |
6062.H7 |
|
Diaphragm Bolt & Washer Kit |
6062.24 |
|
Inlet/Outlet Valve Kit |
6062.H8 |
|
Complete Repair Kit |
8700.84CK |
Oil:
15.5823 - Oil
