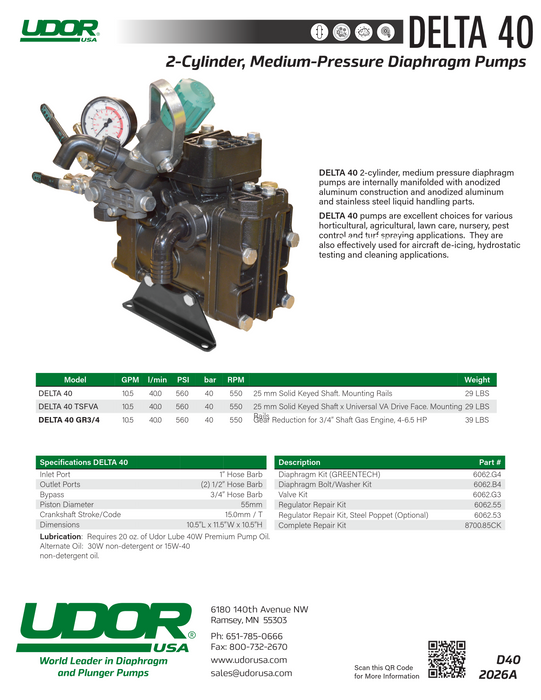

Udor DELTA-40/GR Diaphragm Pump with Gear Reduction – 10.5 GPM, 560 PSI
The Udor DELTA-40/GR combines the dependable performance of a positive-displacement diaphragm pump with a compact gas-engine gear-reduction drive.
Its two-cylinder design provides up to 10.5 gallons per minute of flow and 560 PSI of operating pressure, making it suitable for commercial spraying applications that require more pressure than a conventional 300 PSI diaphragm pump.
The pump is internally manifolded and constructed with an anodized-aluminum body and anodized-aluminum and stainless-steel liquid-handling components. GREENTECH pumping diaphragms are standard, with Buna-N available as an alternative.

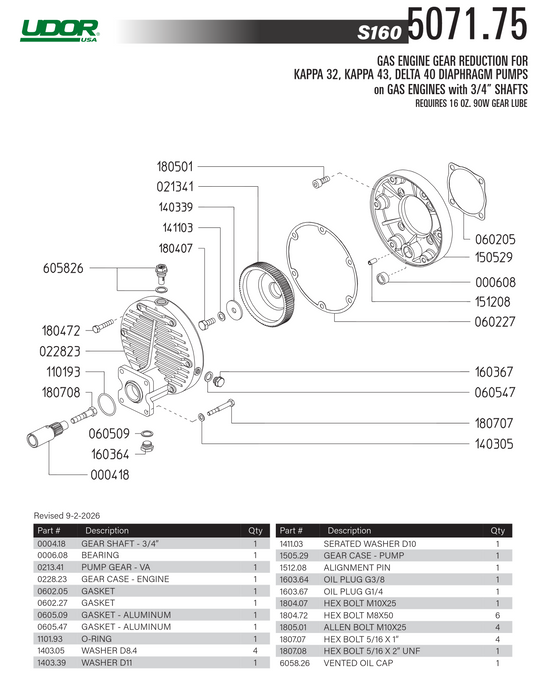

The factory-installed gear reduction allows the pump to be mounted to a compatible small gasoline engine (4-6.5HP) without requiring the operator to fabricate an external belt-reduction system.
The DELTA-40/GR also includes a pulsation dampener and pressure-control assembly, helping provide smoother spraying and convenient adjustment of operating pressure.
Product Specifications
|
Specification |
Details |
|---|---|
|
Manufacturer |
Udor |
|
Model |
DELTA-40/GR |
|
OEM designation |
DELTA 40 GR3/4 |
|
Pump type |
Medium-pressure diaphragm |
|
Cylinders / diaphragms |
2 |
|
Maximum flow |
10.5 GPM / 40 LPM |
|
Maximum pressure |
560 PSI |
|
Maximum pump RPM |
550 RPM family rating; 540 RPM on GR breakdown |
|
Drive configuration |
Gas-engine gear reduction |
|
Engine shaft |
3/4" |
|
Compatible engine range |
4–6.5 HP |
|
Inlet |
1" hose barb |
|
Discharge outlets |
(2) 1/2" hose barbs |
|
Bypass |
3/4" hose barb |
|
Included regulator |
6010.24 |
|
Piston diameter |
55 mm |
|
Crankshaft stroke |
15 mm |
|

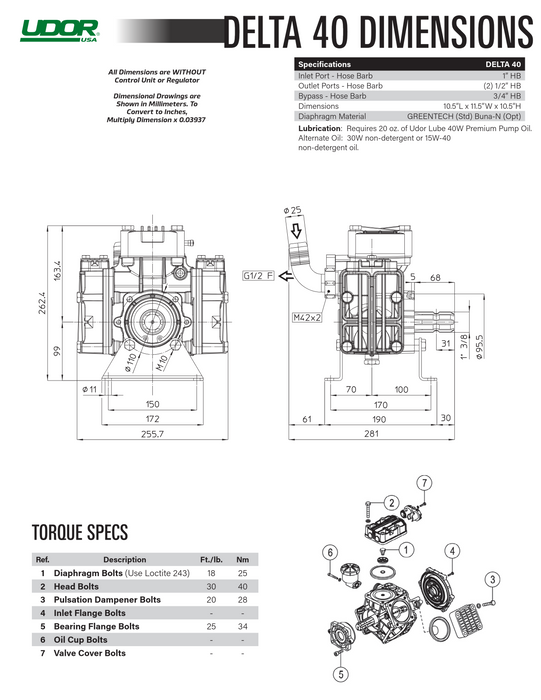

Pump-only dimensions |
10.5"L × 11.5"W × 10.5"H |
|
Weight with gear reduction |
39 lb |
|
Pump oil capacity |
20 oz. |
|
Recommended pump oil |
Udor Lube 40W Premium Pump Oil |
|
Alternate pump oil |
30W non-detergent or 15W-40 non-detergent |
|
Standard diaphragms |
GREENTECH |
|
Optional diaphragms |
Buna-N |

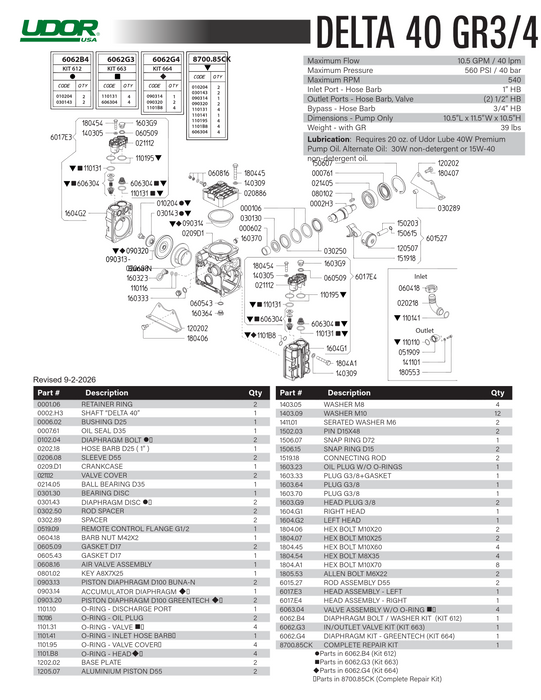

OEM Repair Kits and Replacement Parts
|
Repair Kit |
Udor Part Number |
|---|---|
|
GREENTECH Diaphragm Kit |
6062.G4 |
|
Diaphragm Bolt & Washer Kit |
6062.B4 |
|
Inlet/Outlet Valve Kit |
6062.G3 |
|
Regulator Repair Kit |
6062.55 |
|
Optional Steel-Poppet Regulator Kit |
6062.53 |
|
Complete Repair Kit |
8700.85CK |
Oil:
15.5823 - Oil
