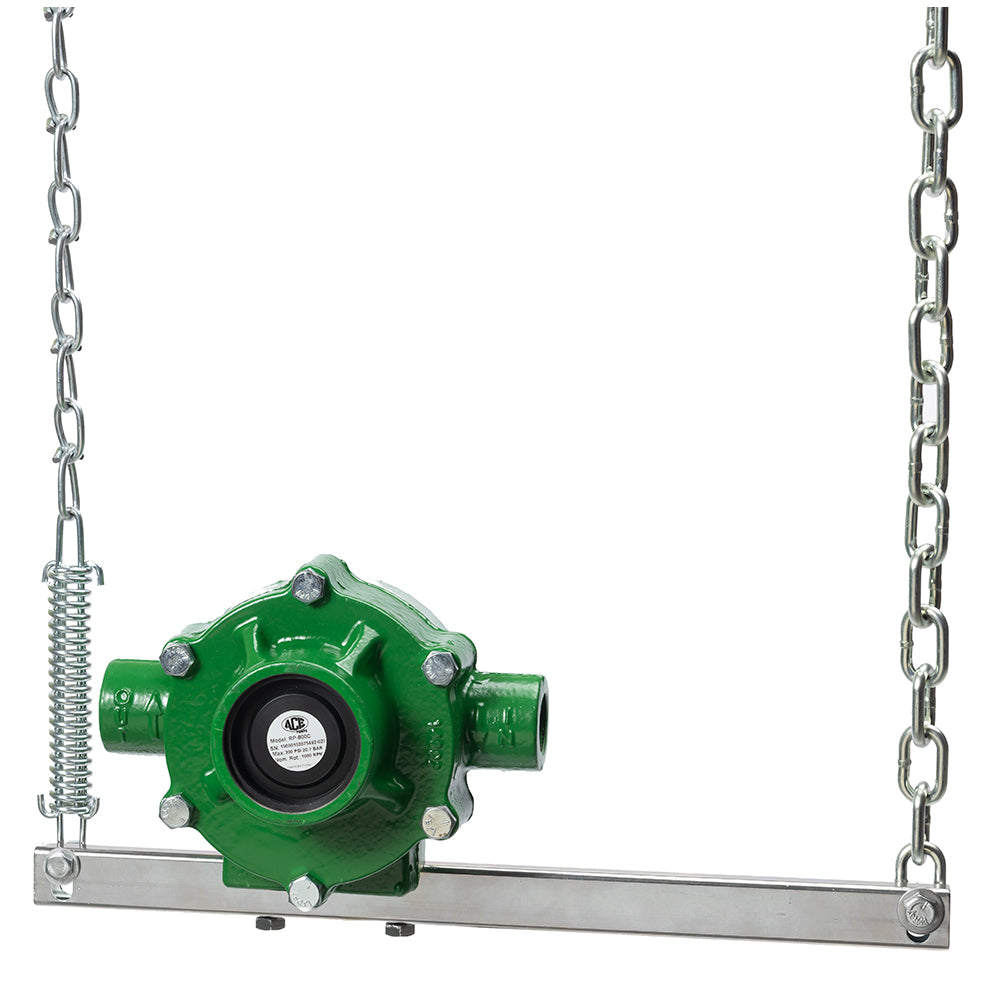

Ace RP-TBK Torque Bar Kit – 6 & 8 Roller Pumps

The Ace RP-TBK Torque Bar Kit is designed to support Ace 6-roller and 8-roller pumps when mounted directly to a tractor's power take-off (PTO) shaft. This kit helps prevent the pump housing from rotating during operation while supporting the pump and transferring the PTO torque load to the tractor frame.

When a roller pump is driven by a tractor PTO, the pump housing must be properly restrained. Without adequate support, the pump can rotate or place unnecessary stress on the PTO connection and pump components.

The RP-TBK features an all-steel torque bar, chains, tension spring, and mounting hardware. Its design supports the pump while allowing the assembly to be secured to the tractor frame.

Compatible with Ace RP-600 and RP-800 Series roller pumps, this torque bar kit is an important accessory for properly installing a PTO-driven agricultural spray pump.

Whether setting up a new roller pump or replacing worn mounting hardware, the Ace RP-TBK provides a manufacturer-designed solution for supporting your PTO-mounted spraying equipment.

Key Features

• Genuine Ace Pump Accessory: OEM torque bar kit, part number RP-TBK.

• 6 & 8 Roller Pump Compatibility: Designed for Ace RP-600 and RP-800 Series roller pumps.

• Prevents Pump Housing Rotation: Restrains the pump from rotating under PTO torque.

• All-Steel Construction: Provides strength and durability for agricultural equipment applications.

• Supports PTO-Mounted Pumps: Helps carry the pump's weight and torque load.

• Chain and Spring Support System: Allows the torque bar assembly to be secured to the tractor frame.

• Mounting Hardware Included: Components needed to assemble and attach the torque bar to compatible pumps.

• Manufacturer-Designed Installation: Works with compatible Ace PTO quick couplers.

Fitment / Compatible With

Compatible Ace Roller Pumps:

• Ace RP-600C – 6-Roller Pump

• Ace RP-600C-R – Reverse Rotation 6-Roller Pump

• Ace RP-600PL – 6-Roller Platinum Series

• Ace RP-800C – 8-Roller Pump

• Ace RP-800C-R – Reverse Rotation 8-Roller Pump

• Ace RP-800PL – 8-Roller Platinum Series

• Other compatible Ace RP-600 and RP-800 configurations

Compatible PTO Quick Couplers:

• Ace BAC-10-RP6-QC – 6-Roller Pump Quick Coupler

• Ace BAC-10-RP8-QC – 8-Roller Pump Quick Coupler

Important Installation Information:

• The preferred installation positions the support chains upward, attached vertically to the tractor frame.

• The heavy torque chain carries the torque load, while the spring and tensioning chain provide additional support.

• Attach chains only to secure tractor frame locations, never to movable linkages.

• An alternate downward-chain installation is permitted under the manufacturer's instructions, without using the tension spring and light chain.

• Always maintain the tractor's PTO safety shielding.

• PTO quick couplers are sold separately unless otherwise specified.
