"CAP" - Commercial Applicator Platform

One truck. More capacity. More capability.

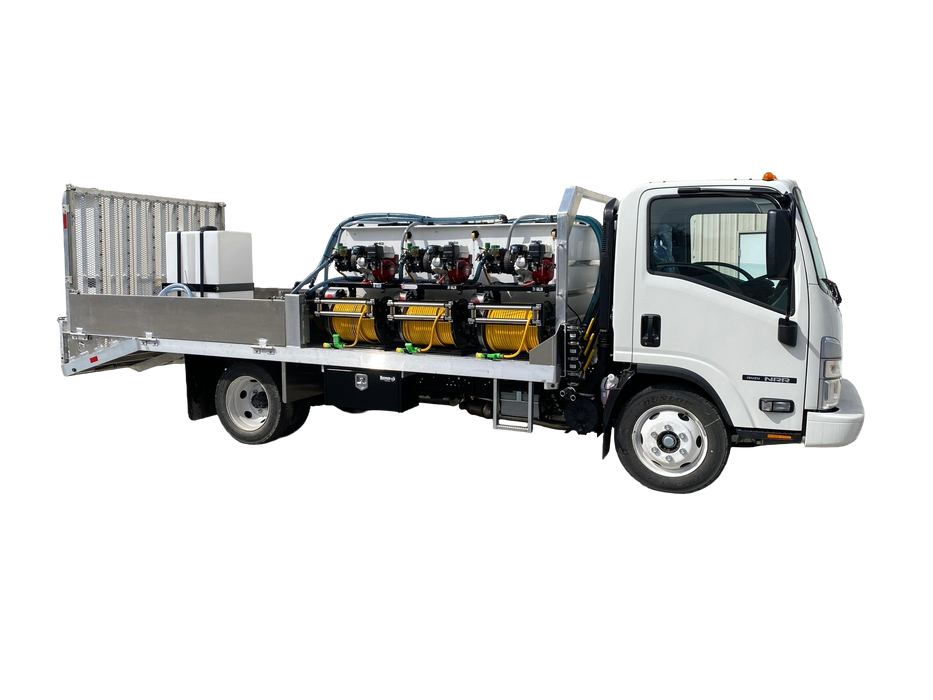

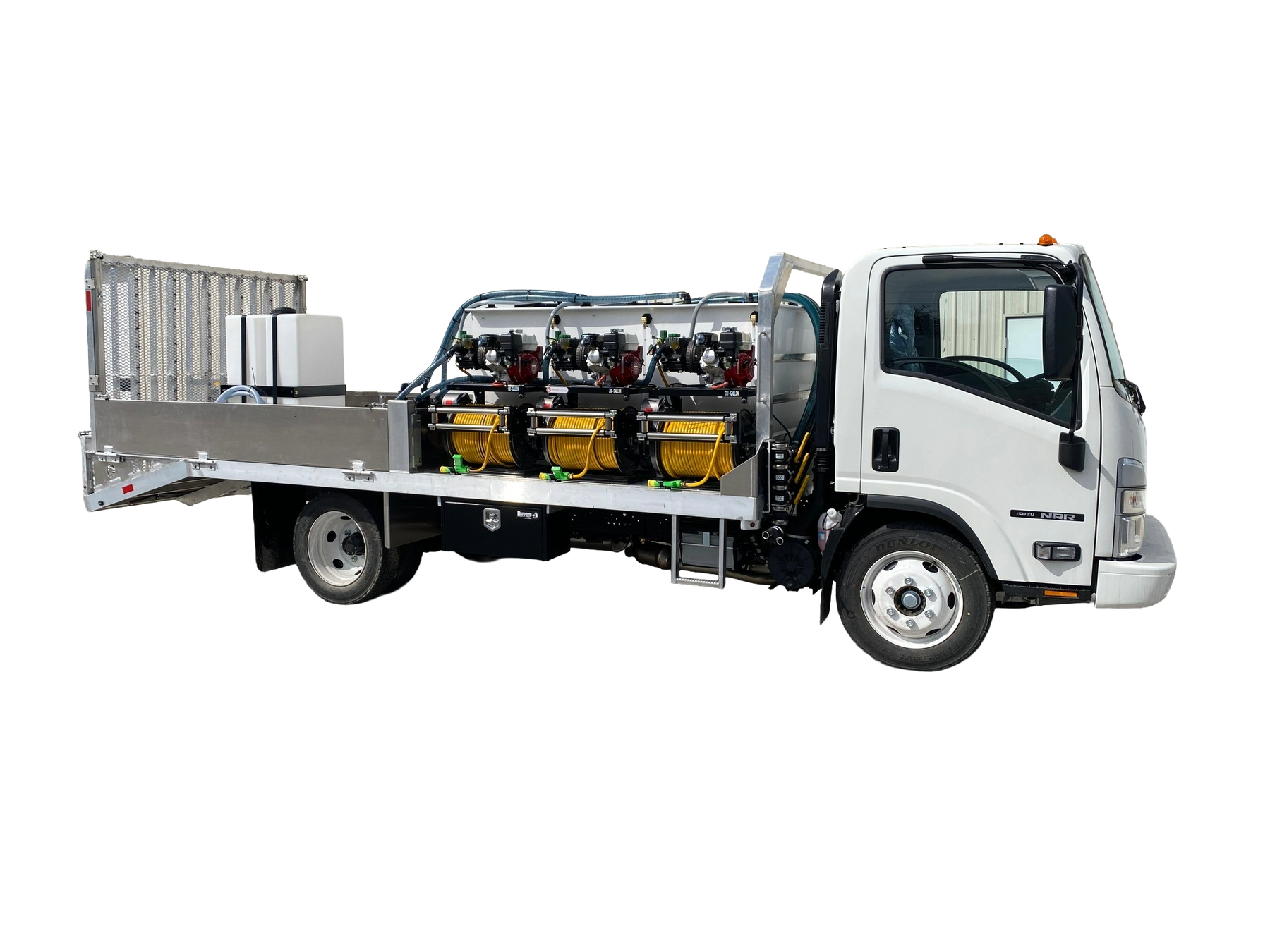

The Gregson-Clark CAP Series is a professional lawn care spray truck built for operators who need the productivity of hose applications and the versatility of a ride-on spreader sprayer in one purpose-built rig. Its 14-foot bed, dovetail rear, 600-gallon tank capacity, flexible spray-system configurations, and integrated storage help consolidate the equipment your crew needs onto a single platform.

A Complete Application Platform for Professional Lawn Care

The CAP Series is designed around the way professional lawn care applicators work. It brings together a high-capacity spray system, room for a ride-on unit, accessible deck space, and secure storage in one commercial platform.

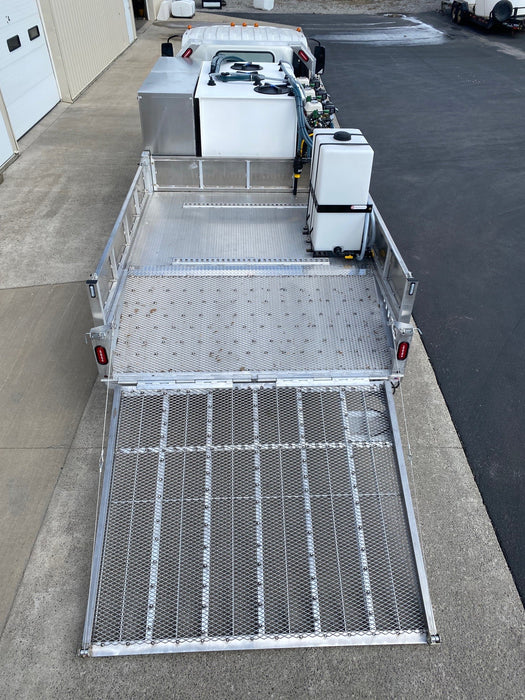

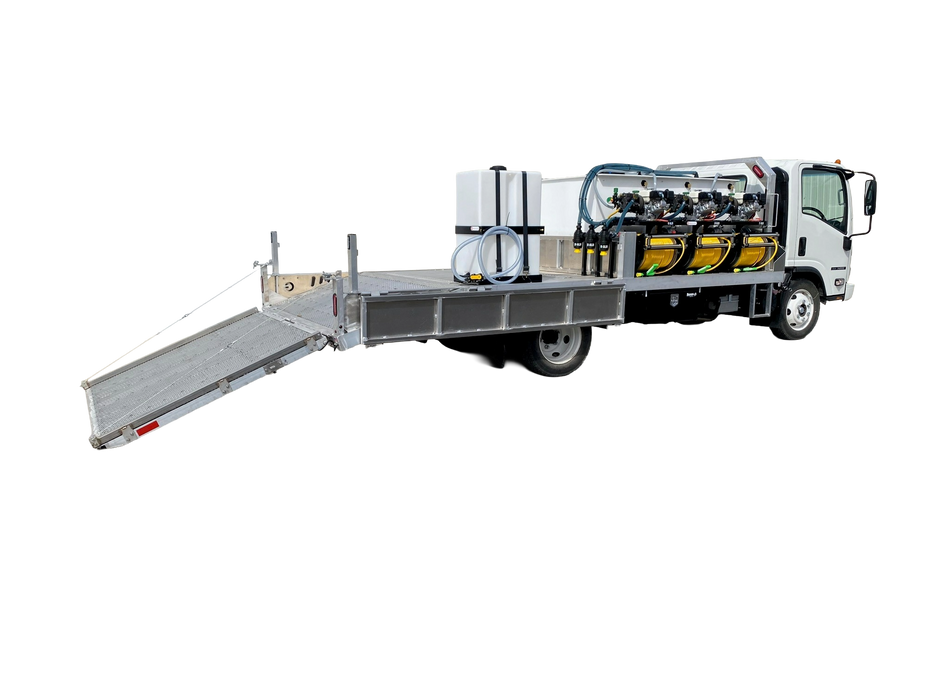

The 14-foot body features a dovetail rear for loading and transporting a ride-on sprayer. Fold-down sides provide easy access to the deck, making it easier to load supplies, place equipment, and reach the tools your crew uses throughout the day.

With 600 gallons of total tank capacity, the CAP Series can be configured as a single tank or divided into multiple compartments, including a 300/200/100-gallon arrangement. This flexibility allows one truck to carry separate products or application mixes for different treatment needs.

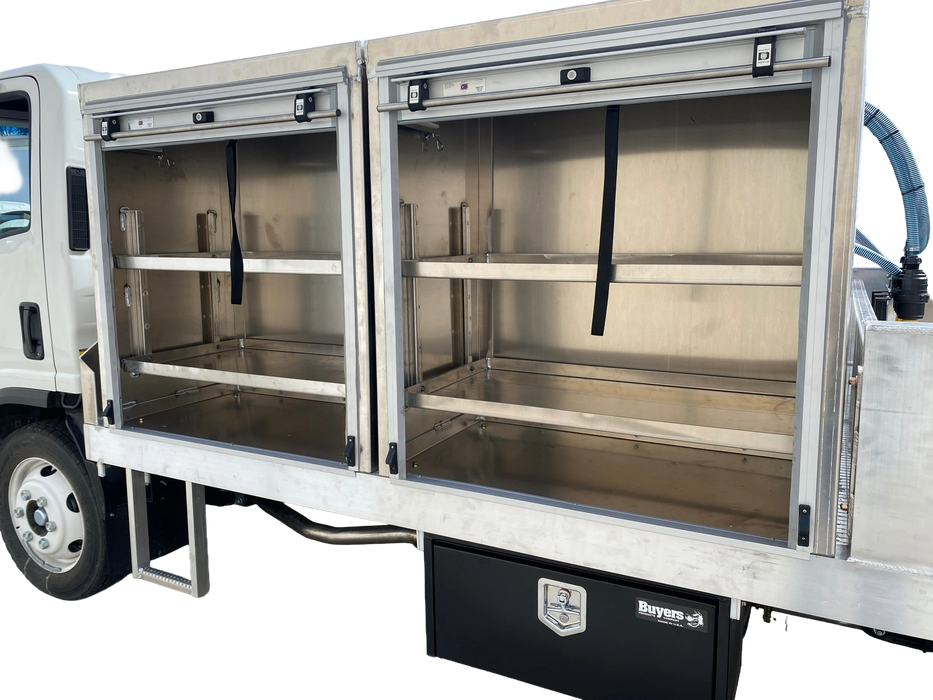

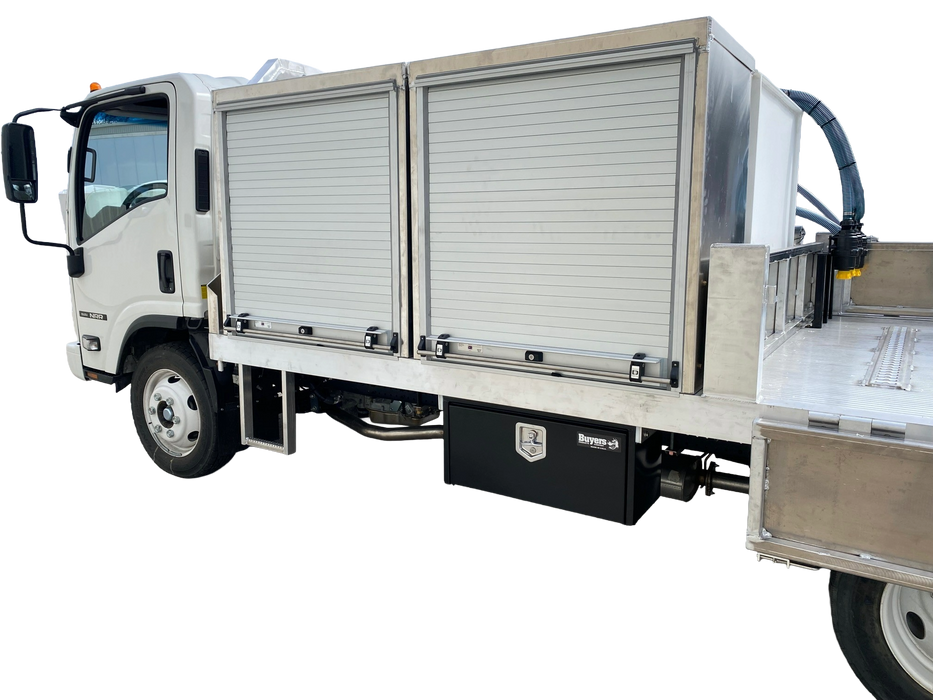

The platform can accommodate up to three pumping systems and three hose reels, giving lawn care companies the ability to configure the rig around their services and application methods. Two 42-inch storage boxes with roll-up doors on the driver’s side keep tools, parts, personal protective equipment, and other essentials organized and accessible.

Designed to fit a 150-inch wheelbase Isuzu NRR chassis, the CAP Series is an ideal solution for lawn care professionals who are looking for a do it all solution. It provides the capacity and flexibility to handle demanding routes without relying on a separate trailer.

Contact Gregson-Clark Spraying Equipment to request a quote or discuss your CAP Series build.

Key Features

• Commercial lawn care spray truck designed for hose and ride-on applications

• 14-foot bed with dovetail rear for loading and transporting a ride-on sprayer

• Fold-down body sides for easier access to deck space, supplies, and equipment

• 600-gallon total tank capacity

• Multiple tank-compartment configurations available, including 300/200/100 gallons

• Space for up to three pumping systems and three hose reels

• Two 42-inch driver-side storage boxes with roll-up doors

• Designed for a 150-inch wheelbase Isuzu NRR chassis

• Consolidated platform can reduce or eliminate the need for a separate trailer

• Configurable to match different lawn care services and application requirements

Ideal For

• Professional lawn care companies

• Fertilizer and weed-control applications

• Operators who perform hose applications and use ride-on spreader sprayers

• Multi-product lawn care programs

• Crews looking to consolidate equipment onto one truck

• Growing lawn care businesses seeking greater route capacity and flexibility

Tank and Spray-System Configurations

The CAP Series provides up to 600 gallons of tank capacity and can be configured to match your application program. A 300/200/100-gallon split is available, allowing operators to dedicate separate compartments to different products or services.

Depending on the selected configuration, the platform can support up to three independent pumping systems and hose reels. Final tank layout, pumping systems, hose reels, plumbing, storage, accessories, dimensions, payload requirements, and pricing depend on the selected build.

Build Your CAP Series

Every lawn care operation is different. Tell us what you apply, how many products you carry, and how your crews work. We will help configure the tank compartments, pumping systems, hose reels, storage, and accessories for your business.
