Delta 100/GR Diaphragm Pump

SKU Delta-100GR

The Delta 100/GR is a 4-cylinder, medium pressure diaphragm pump with pulsation dampener and control unit. The control unit features an adjustable pressure regulator, manual dump lever, dual ball valve outlets, and pressure gauge. The Delta 100 is constructed of anodized aluminum with anodized aluminum and stainless-steel liquid handling parts.

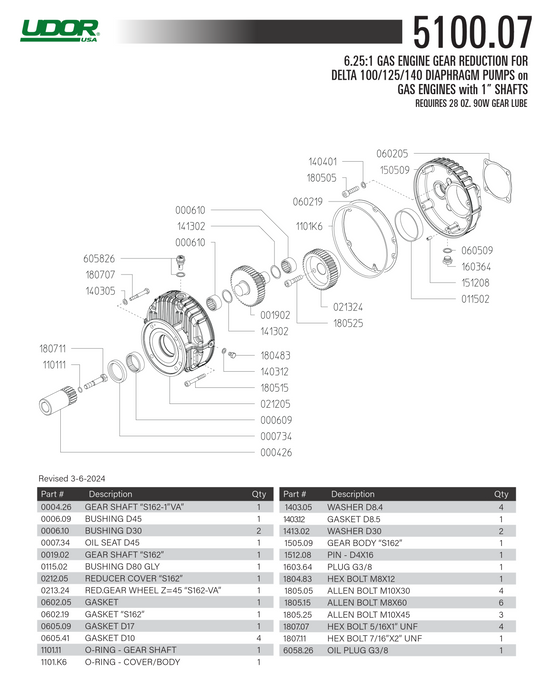

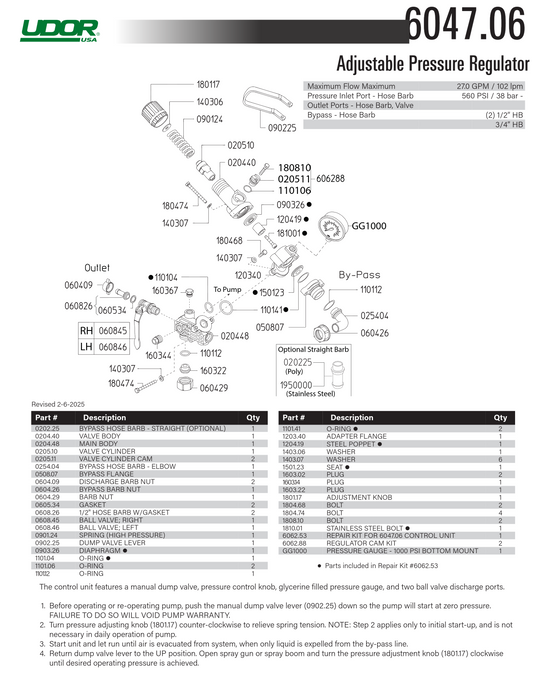

The Delta 100/GR comes with the gear reduction attached to the pump to mount directly to a gas engine (16-20 HP) with a 1" shaft. The 6047.06 pressure regulator is included with the pump.

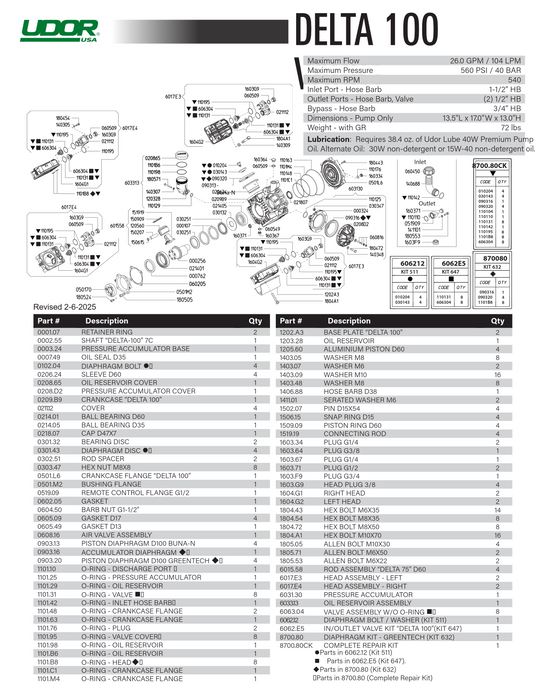

Common replacement parts for the Delta 100 are as follows:

Diaphragm Kit:
8700.80 - GreenTech

Valve Kit:
6062.E5 - Valve Kit

6063.04 - Single Valve


15.5823 - Oil

Delta 100 Overview:

Max GPM: 26

Max PSI: 560

Inlet: 1-1/2"

Outlet:  (2) 1/2"

Weight: 72 Lbs

Click here to download the Delta 100/GR manual
