Udor IOTA-20/GR Diaphragm Pump with Gear Reduction – 5 GPM, 270 PSI

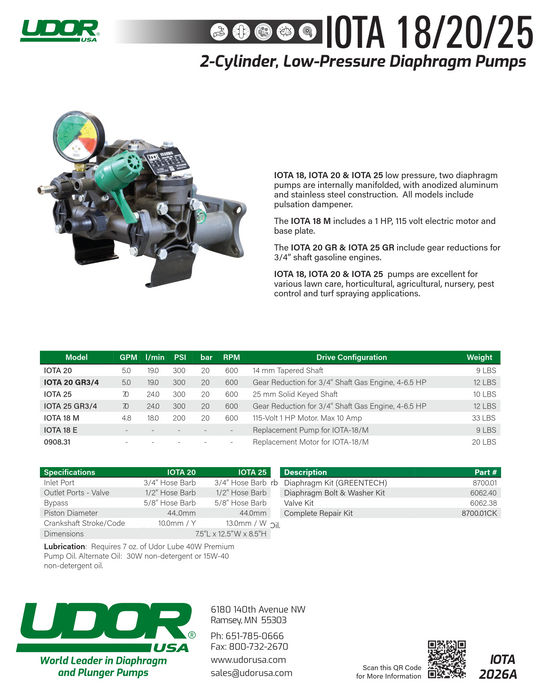

Udor IOTA-20/GR – Compact Gas-Engine Diaphragm Sprayer Pump
The Udor IOTA-20/GR is a compact, positive-displacement diaphragm pump engineered for commercial spray equipment powered by small gasoline engines.
With a maximum flow of 5 gallons per minute, and a max pressure of 270 PSI, the IOTA-20/GR is an excellent option for professional lawn-care sprayers, pest-control equipment, nursery sprayers, and other applications requiring dependable flow and adjustable spraying pressure.
Factory-Installed Gas-Engine Gear Reduction
Unlike the standard IOTA-20, the IOTA-20/GR includes a factory gas-engine gear reduction.
Designed for compatible gasoline engines with a 3/4" output shaft, the gear reduction allows the engine to operate at its normal speed while keeping the diaphragm pump within its rated operating RPM.
This configuration is suitable for properly matched small gasoline engines, commonly in the 4–6.5 HP range.
Compact Two-Diaphragm Design
The IOTA-20/GR features two pumping diaphragms and an internally manifolded design that helps maintain consistent flow in a compact package.
The pump is designed for use with compatible spray solutions and can be serviced using genuine Udor diaphragms, valves, seals, and repair kits.
Adjustable Pressure Control
The IOTA-20/GR configuration includes an adjustable pressure regulator, manual dump lever, and pressure gauge.
This allows operators to set the desired spraying pressure and unload the system when needed.
The assembly features a 3/4" inlet, 3/8" discharge outlet, and 5/8" bypass connection.
Designed for Professional Spraying
The IOTA-20/GR is suitable for properly configured applications including:
-
Commercial lawn-care spraying
-
Pest-control equipment
-
Nursery and horticultural spraying
-
Small agricultural sprayers
-
Turf-care applications
-
Compact truck-mounted sprayers
-
Trailer-mounted spray equipment
-
Custom-built spray systems
Technical Specifications
|
Specification |
Details |
|---|---|
|
Manufacturer |
Udor |
|
Model |
IOTA-20/GR |
|
OEM designation |
IOTA 20 GR3/4 |
|
Gregson-Clark SKU |
Iota-20/GR |
|
Pump type |
Low-pressure diaphragm |
|
Pumping diaphragms |
2 |
|
Maximum flow |
5 GPM / 19 LPM |
|
Advertised assembly pressure |
270 PSI |
|
OEM pump pressure rating |
290 PSI |
|
Maximum pump speed |
600 RPM |
|
Drive |
Gas-engine gear reduction |
|
Engine shaft diameter |
3/4" |
|
OEM engine range |
4–6.5 HP |
|

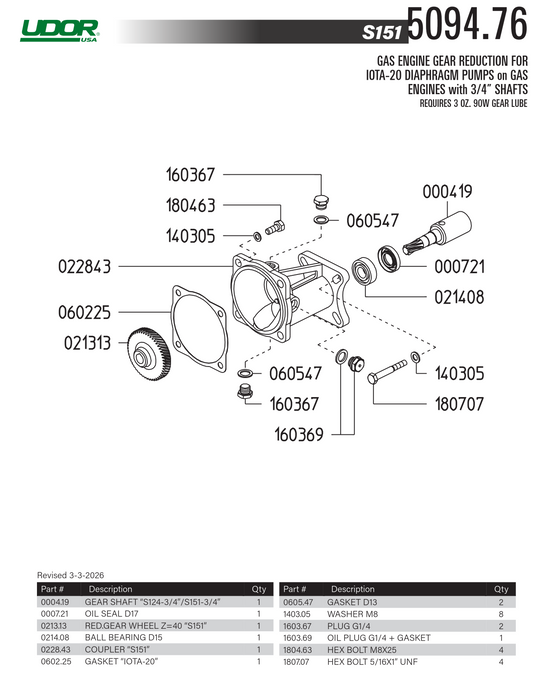

Gearbox part number |
5094.76 |
|

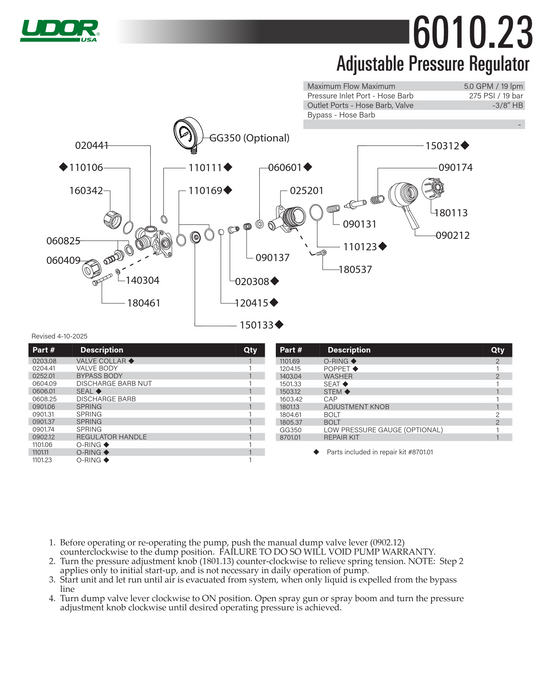

Pressure regulator |
6010.23 |
|
Regulator maximum pressure |
275 PSI |
|
Inlet |
3/4" hose barb |
|
Outlet |
3/8" hose barb with supplied regulator |
|
Bypass |
5/8" hose barb |
|
Piston diameter |
44 mm |
|
Crankshaft stroke |
10 mm |
|

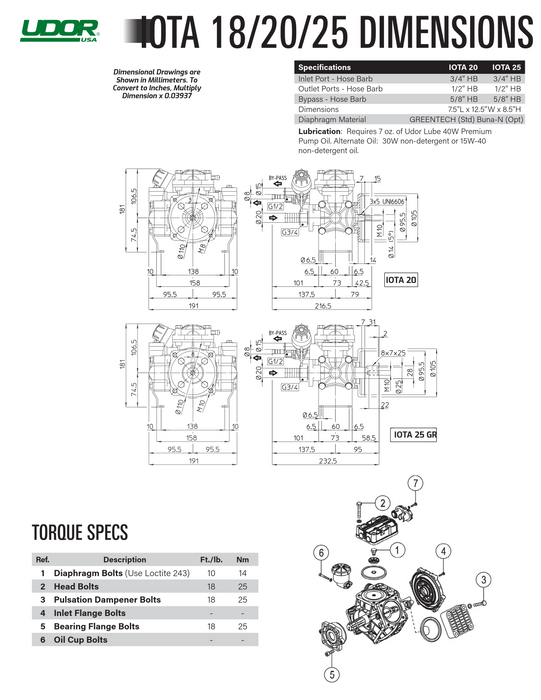

Published dimensions |
7.5"L × 12.5"W × 8.5"H, pump dimensional reference |
|
OEM weight with gear reduction |
12 lb |
|
Gregson-Clark listed weight |
17 lb |
|
Pump oil capacity |
7 oz. |
|
Gearbox oil capacity |
3 oz. |
|
Gearbox lubricant |
90W gear oil |
|
Recommended pump oil |
Udor Lube 40W Premium Pump Oil |
|
Alternate pump oil |
30W non-detergent or 15W-40 non-detergent |
|
Standard diaphragms |
GREENTECH |
|
Optional diaphragms |
Buna-N |
|
Pump construction |
Anodized aluminum and stainless steel |
|
Color |
Not specified |

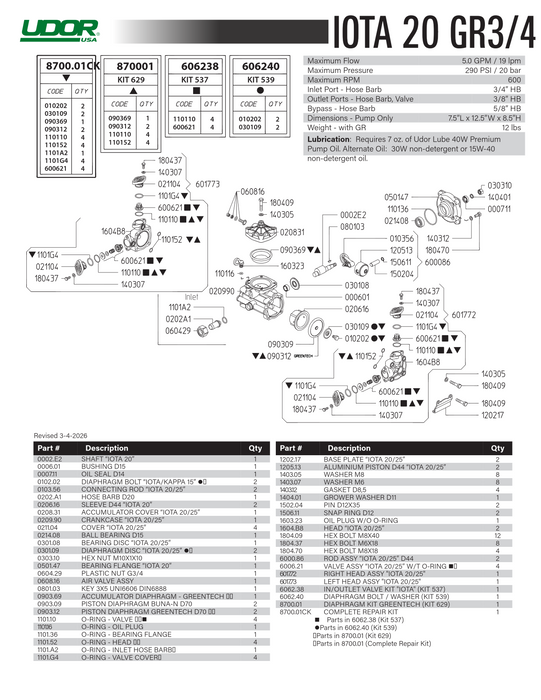

OEM Repair Kits
|
Repair Item |
Udor Part Number |
|---|---|
|
GREENTECH diaphragm kit |
8700.01 |
|
Diaphragm bolt and washer kit |
6062.40 |
|
Inlet/outlet valve kit |
6062.38 |
|
Regulator repair kit |
8701.01 |
|
Complete pump repair kit |
8700.01CK |
Oil:
15.5823 - Oil
Click here to download the IOTA-20GR manual.
