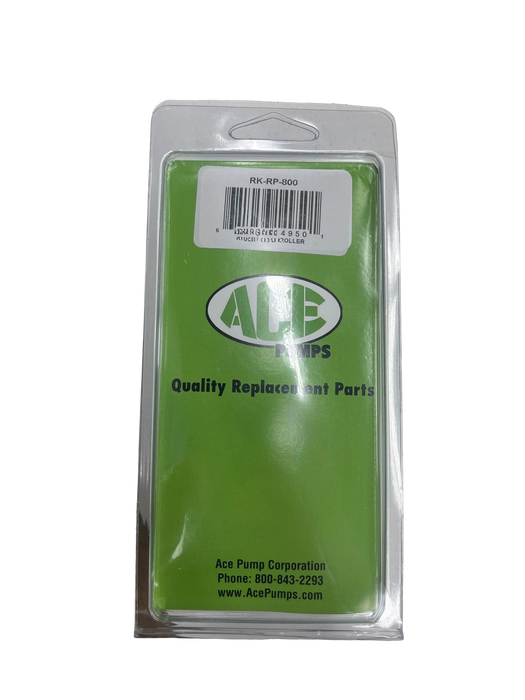

Ace RK-RP-800 Rebuild Kit for RP-800C Roller Pump
The Ace RK-RP-800 rebuild kit contains the primary wear components needed to service an Ace RP-800 Series eight-roller pump. It is designed for pumps experiencing reduced flow, difficulty building pressure, shaft leakage, inconsistent output or visible roller wear.
Rollers and seals naturally wear as a roller pump operates. Chemical exposure, dry running, improper storage, excessive speed and abrasive materials can accelerate that wear. Replacing these components can help restore the output of an otherwise serviceable pump while avoiding the expense of purchasing a complete replacement.

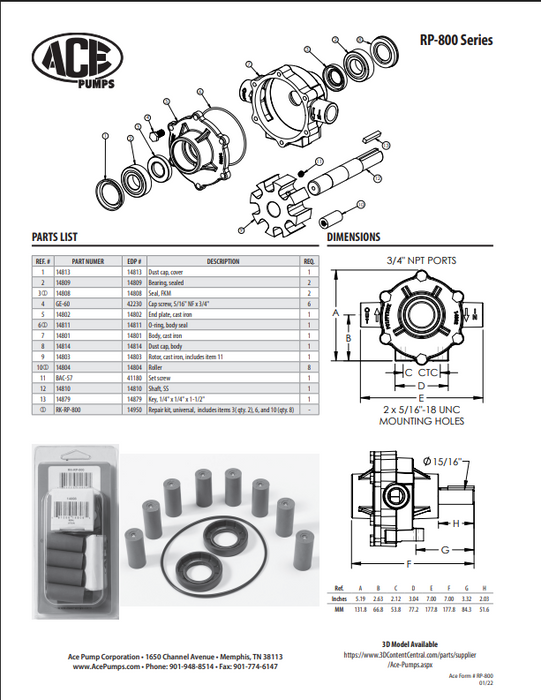

Each kit includes a complete set of eight thermoplastic rollers with metal cores, two FKM shaft seals and one pump-body O-ring. These are the same components identified in Ace’s RP-800 parts breakdown as repair-kit items.
The RK-RP-800 fits both standard- and reverse-rotation RP-800C pumps. Ace also identifies the kit as compatible with Hypro 7560 Series eight-roller pumps. Always confirm the pump’s manufacturer and model number before ordering.
Please note: Bearings, dust caps, the pump shaft, rotor, housing and end plate are not included. These components should be inspected before the pump is reassembled.
What’s Included
| Component | Quantity | Material |
|---|---|---|
| Replacement rollers | 8 | Thermoplastic with metal core |
| Shaft seals | 2 | FKM |
| Pump-body O-ring | 1 | Elastomer |
Key Features
- Genuine Ace Pumps rebuild kit
- Manufacturer part number RK-RP-800
- Complete set of eight replacement rollers
- Thermoplastic rollers feature durable metal cores
- Includes both pump-shaft seals
- Includes replacement pump-body O-ring
- Fits standard and reverse-rotation RP-800C pumps
- Also compatible with Hypro 7560 Series pumps
- Replaces the primary internal wear components
- Helps restore pump flow and pressure
- Helps correct leakage caused by worn shaft seals
- More economical than replacing an otherwise serviceable pump
- Packaged as a matched repair kit for proper fitment
Compatible Pumps
Confirmed Ace Compatibility
- Ace RP-800C
- Ace RP-800C-R
- Ace RP-800 Series PTO-driven eight-roller pumps
Additional Ace-Listed Compatibility
- Hypro 7560 Series eight-roller pumps
