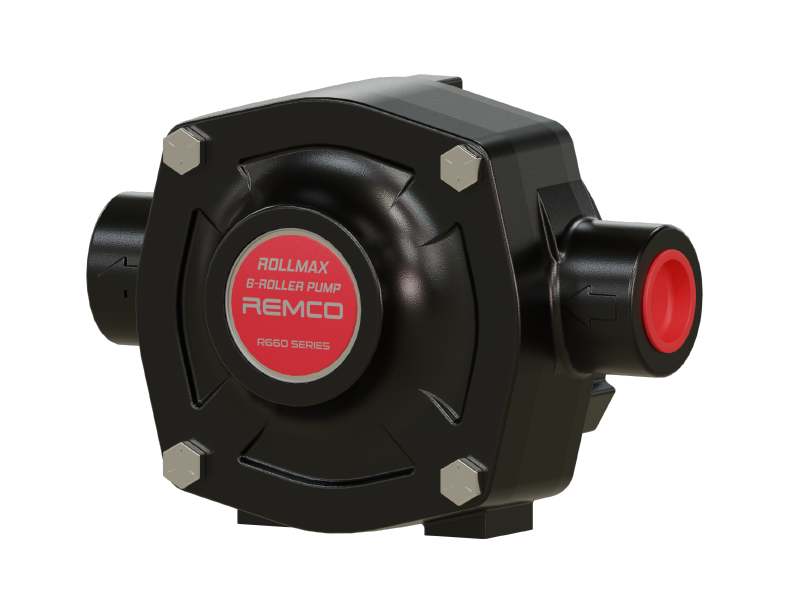

REMCO RollMax R660C 6-Roller Pump
Product Description
The REMCO RollMax R660C six-roller pump provides the flow, pressure and serviceability needed for demanding agricultural spraying systems. With a maximum flow rate of 19.6 GPM and maximum operating pressure of 150 PSI, it can support broadcast spraying, boom spraying, spot spraying and compatible fluid-transfer applications.
The R660C features a cast-iron housing with a protective black epoxy finish and is designed for general agricultural use. Six hardened-nylon Max Rollers produce consistent output, while FKM/Viton seals provide chemical resistance for compatible agricultural liquids.
A 5/8" solid shaft and counterclockwise rotation allow the pump to be used with a compatible PTO coupler or other properly configured drive system. The pump is rated for operation at speeds up to 1,000 RPM. Always confirm the drive speed, rotation and coupling requirements before installation.
REMCO’s Rebuild Ready construction allows the end plate and internal wear components to be accessed with a wrench while the pump remains attached to the drive shaft and plumbing. This helps reduce service time during the spraying season. Remco Industries
Important: This listing is for the R660C pump only. A PTO coupler, torque arm, chain, regulator, hoses and other system components are not included unless otherwise stated.
Key Features and Benefits
- Six-roller design provides flow rates up to 19.6 GPM
- Maximum operating pressure of 150 PSI
- Cast-iron housing for general agricultural applications
- Black epoxy coating helps protect the pump housing
- REMCO hardened-nylon Max Rollers
- FKM/Viton shaft seals and O-ring
- Permanently lubricated, heavy-duty sealed bearings
- Two 3/4" FNPT ports
- 5/8" solid drive shaft
- Counterclockwise shaft rotation
- Maximum operating speed of 1,000 RPM
- Rebuild Ready design simplifies access to internal wear components
- Can be serviced without disconnecting the plumbing or drive shaft
- Compact roller-pump design for agricultural sprayers
Common Applications
The REMCO R660C may be used in properly configured systems for:
- Agricultural crop spraying
- Pasture and field spraying
- Boom spraying
- Spot spraying
- Liquid fertilizer application
- Compatible herbicide and pesticide application
- General-purpose spraying
- Compatible liquid transfer
- PTO-driven agricultural sprayers
Chemical compatibility must be confirmed before use. For harsher or more corrosive products, consider the stainless-steel REMCO R660SS.
Fitment and Compatibility
The R660C is designed for spraying systems that require:
- A six-roller pump
- Counterclockwise pump rotation when facing the shaft
- A 5/8" solid input shaft
- 3/4" female NPT pump ports
- Flow rates up to 19.6 GPM
- Pressures up to 150 PSI
- Operating speeds no greater than 1,000 RPM
The pump can be installed on a properly configured PTO-driven system using a compatible coupler, torque-restraint system and safety equipment. It may also be used with another compatible drive source when its speed, rotation, alignment and coupling meet REMCO’s requirements.
What Is Included
- One REMCO RollMax R660C cast-iron six-roller pump
